Pneumatic Rotary Drill
Pneumatic Rotary Drill
Pneumatic Rotary Drill
Pneumatic Rotary Drill
Pneumatic Rotary Drill
Pneumatic Rotary Drill
Pneumatic Rotary Drill
Pneumatic Rotary Drill

Pneumatic Rotary Drill

Drill Size: 22mm or 32mm
 Widely used in large-scale mechanical assembly and bridge construction and other metal materials drillings, reaming and Tapping

Rated 4.5/5 based on 378 customer reviews
Send Inquiry Contact US
Share:
Previous:
Next:
Content

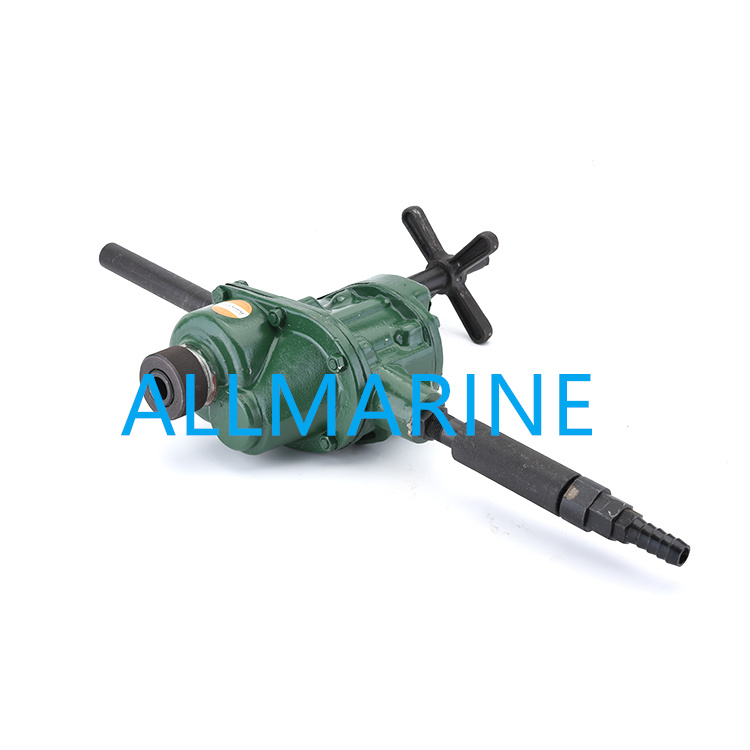

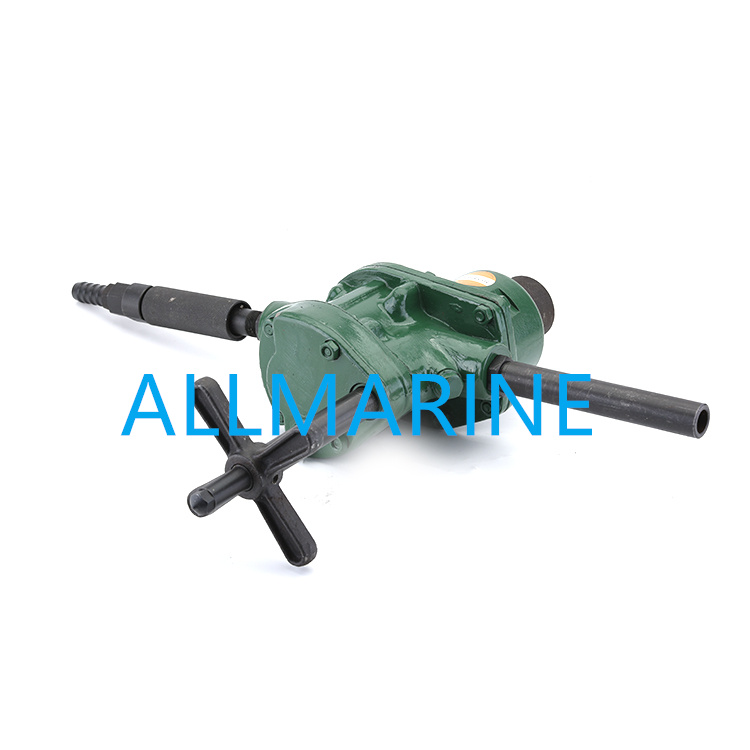

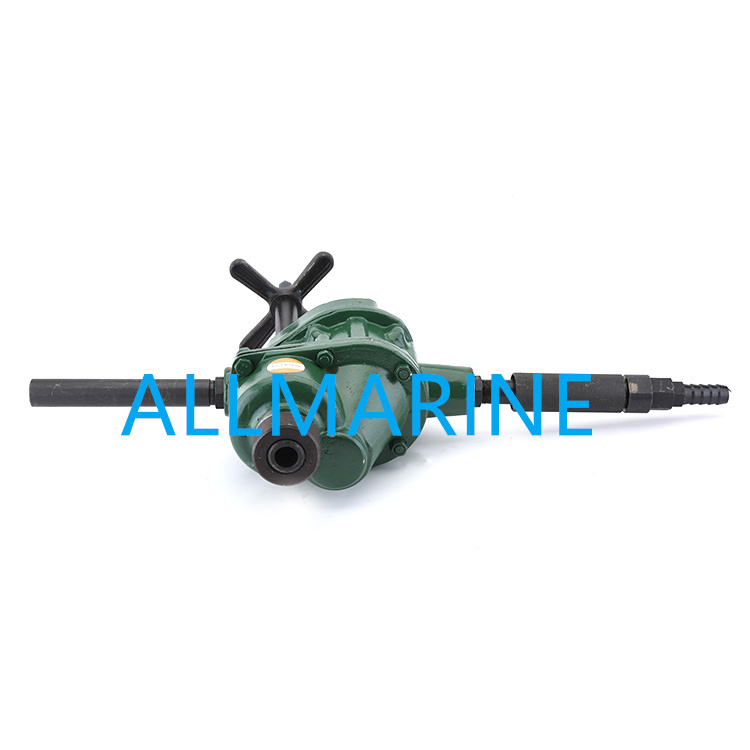

Heavy Duty Pneumatic Rotary Drill
 Widely used in large-scale mechanical assembly and bridge construction and other metal materials drillings, reaming and Tapping
Specifications:
Model PD-22 PD-32
Code 590351 590352
Max. Drilling Dia. 22mm 32mm
Air Pressure 6Bar
Load Speed 300RPM 225RPM
Air Consumption 1700L/MIN 2000L/MIN
POWER 0.95KW 1.14KW
Air Hose ID 16mm 16MM
Taper of Spindle Hole No.2 No.3
Axial Feed Length 60mm 70mm
Dimensions 532x140x322mm 600x140x330mm
Net Weight 9kg 13kg

Inquiry
