Air Duct Hose

Size 150mm to 1000mm (6” to 36”)
Length: 5m, 10m, 15m, 20m etc.

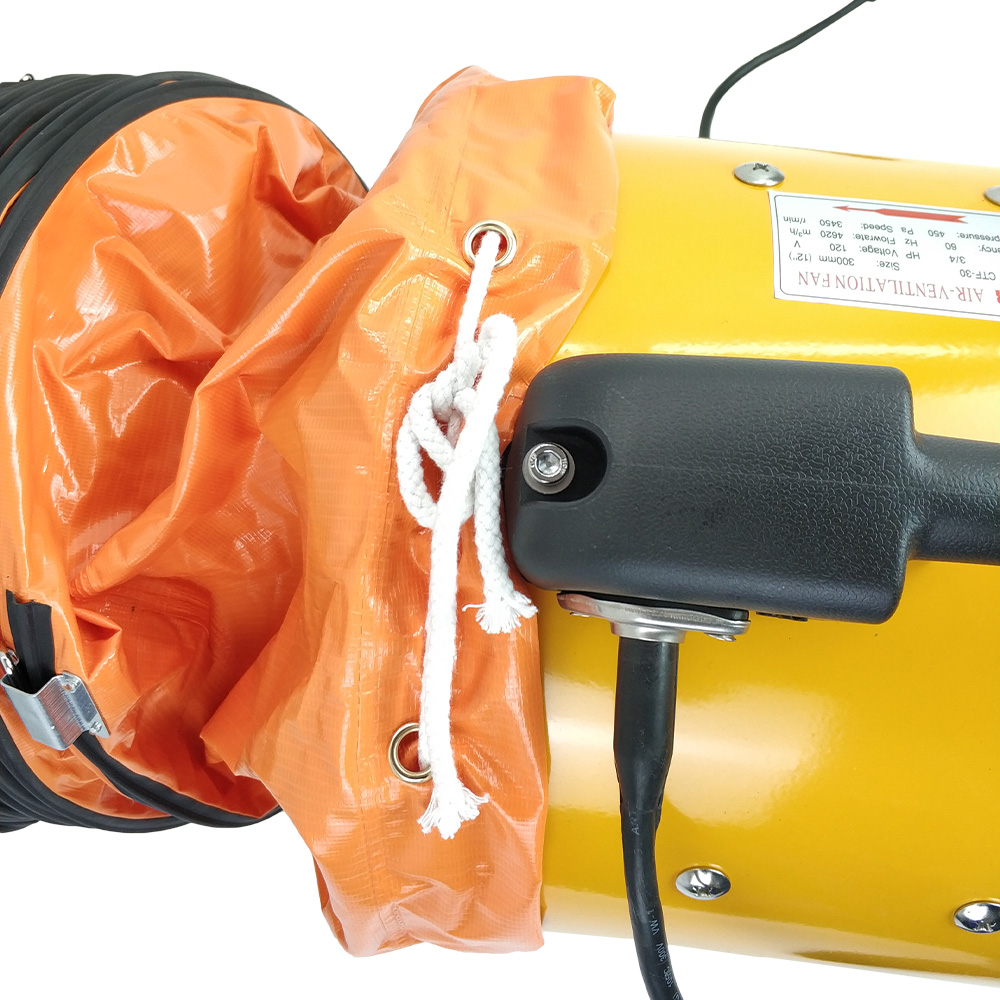

Duct Hose Flexible duct hose

Send Inquiry Contact US

Floor Dryer 3 Speed

RAMFAN Air Mover

Content

FLEXIBLE DUCT HOSE

1.Material: Mesh Cloth Coated PVC with Steel Wire Reinforced

2．Characteristic: Acid and Alkali resistant, Inflaming Retarding, Antimildew

3．Size :

Diameter 150mm (6’’) -1000mm (40’’)

Length 5m(16’) – 30m(96’)，Generally is 5m(16’) and 10m(32’)

4．Thickness : 0.35mm(0.014’’)

5．Pressure: -3000pa + 6000pa

6．Magnification Ratio: 30:1

7．Color: Orange, Green, Red, etc.

8．Each duct hose connected freely

Temperature range: -30° +100°C.

10.Current Speed : 50m/s

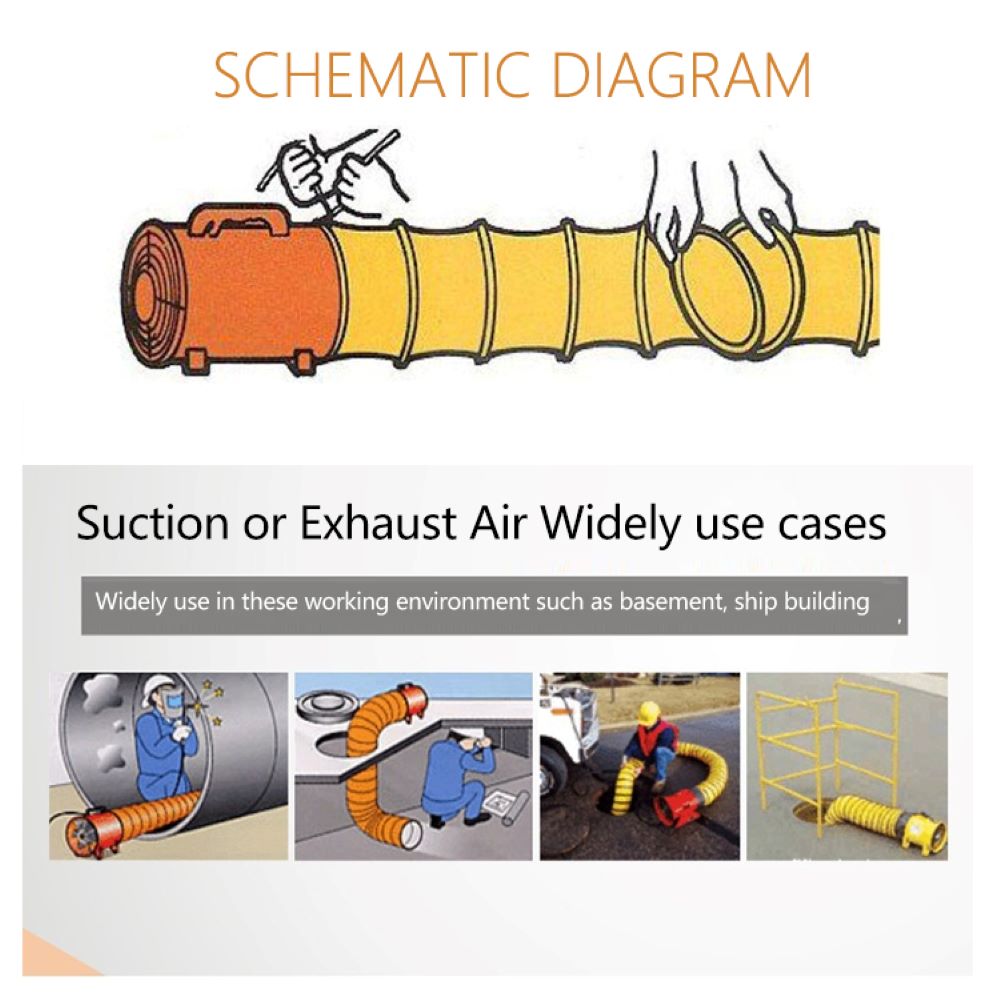

Usage: Widely use in these working environment such as basement, ship building, welding, laboratory, Tunnel, Engine room, etc. where need to ventilate or exhaust waste air or supply fresh air by fan.
